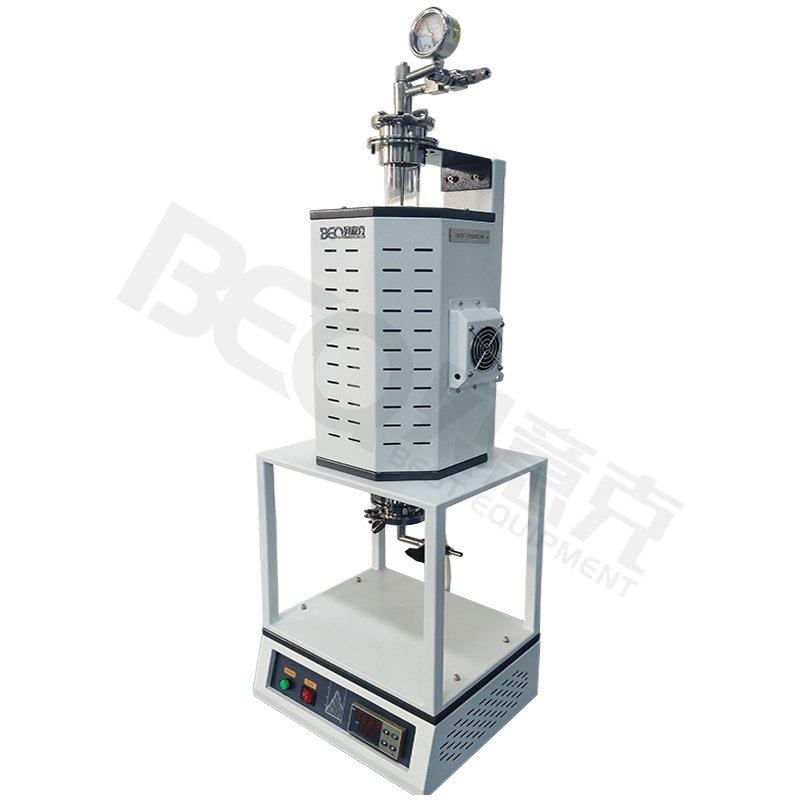

真空淬火炉 BTF-1100C-H/Vacuum quenching furnace

Working Temperature

工作温度

Max. Temperature: 1100℃(< 1 hr)

**温度：1100℃(< 1 hr)

Continuous working temperature:1000℃

持续工作温度：1000℃

Heating Zone

加热区

Heating Zone Length:11.81"(300mm)

加热区长度：11.81" (300mm)

Constant Temperature Zone: 3.93 " (100mm. +/- 1℃ )

恒温区长度：3.93”(100mm)

Temperature Controller

控温方式

PID automatic control and auto-tune function.

模糊PID控制和自整定调节

30 programmable segments for precise thermal processing.

智能化30段可编程控制

Built-in protection for the over-heated and broken thermocouple.

超温和断偶报警功能

Temperature Accuracy: +/- 1℃.

控温精度：+/- 1℃

K type thermocouple.

K型热电偶

Heating Elements

加热元件

Fe-Cr-Al Alloy doped by Mo

电阻丝（掺钼铁铬铝合金）

Processing Tube

炉管

High purity quartz tube: 25/50mm OD×600mm Length is included

高纯石英管：25/50（外径）*600（长）mm

Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center. (Ceramic blocks must be fully inserted into the furnace chamber before heating).

管堵阻挡管中心产生的热辐射，必须在加热前塞进炉膛的正确位置（石英或氧化铝管堵可选）

Vacuum Flange

真空法兰


pecial designed flanges,convenient for hanging buburning sample

特殊设计法兰方便挂烧样件

Vacuum Pressure

真空压力

1pa can be achieved by mechanical pump

机械泵可达1pa

10^-4 pa can be reached by molecular pump

分子泵可达10^-4pa

Please clik the picture below to order vacumm parts

点击下列图片订购真空部件

Dimensions

尺寸

280*380*400mm（L*W*H without flange）

Net weight设备净重

About 16kgs

约16kgs

Warranty

质保

One year limited warranty with lifetime support  (Consumable parts such as processing tubes, and O-rings are not covered by the warranty, please  order replacements at related products below.)

一年质保终身支持（消耗品如炉管，O型圈不在质保范围内，）

Compliance

认证

CE Certified

CE认证

The furnace is ready to pass TUV(UL61010)  or CSA certification at extra cost.

可付费进行TUV(UL61010)或者CSA认证

Application Note

应用

The Widely unsed for metallury,machinery,light industry,commercial inspection,universities and research departments

广泛应用于冶金、机械、轻工、商检、高等院校及科研部门
