概述：

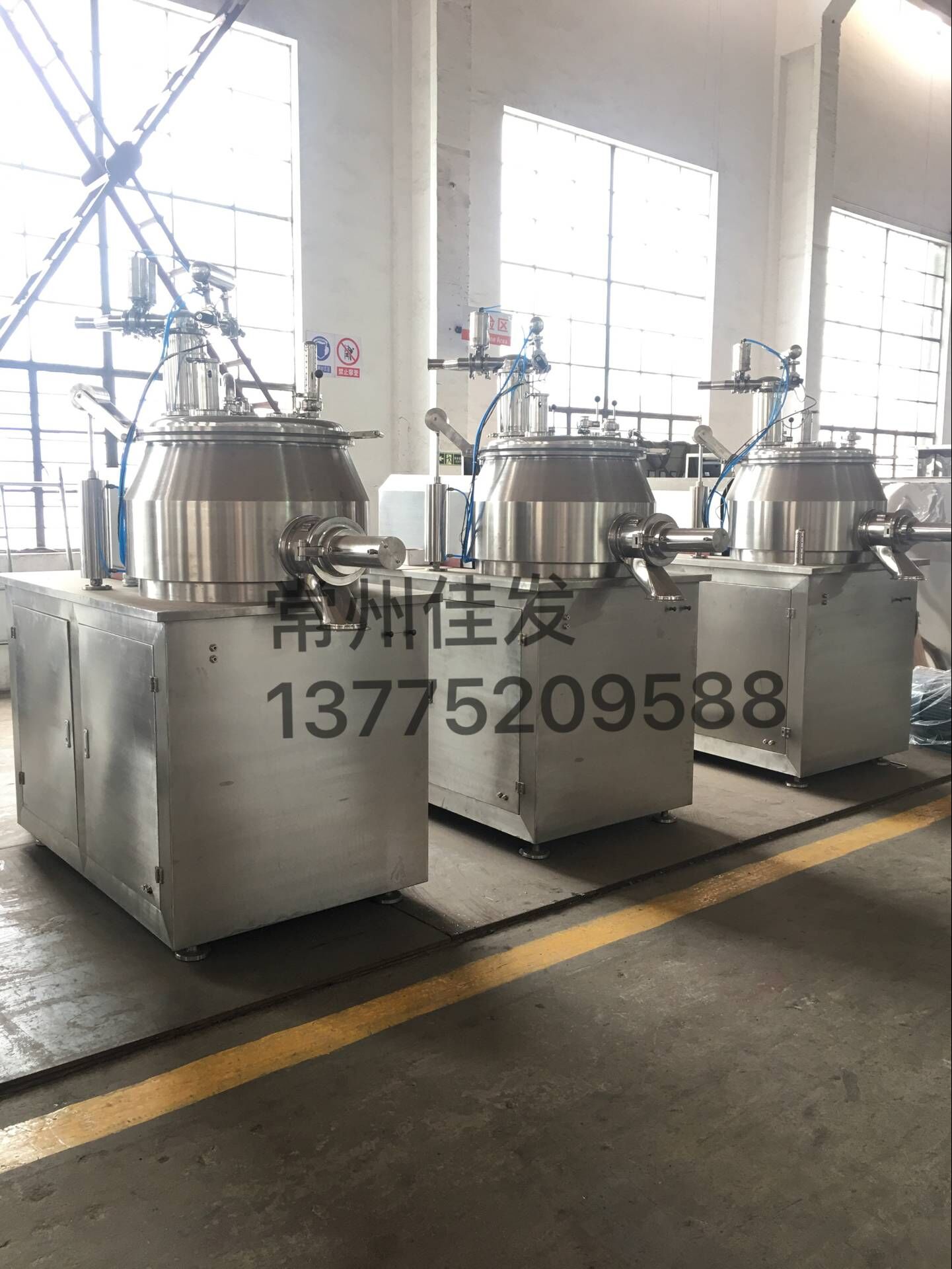

★GHL型高速混合制粒机是一种在一道工序内将不同的粉状物料混合并制成颗粒的高效率设备，广泛应用于制药、食品、化工等行业。
★GHL high speed mixer granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one
|
设备特点：
procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry,etc.
★本机采用卧式圆筒或圆锥形结构，用户可自由选择。
★设备内表无死角，密闭状态下工作，符合“GMP”要求。
★制粒时间短，高效节能。
★制成的颗粒质地均匀，流动性好，为压片工序提供*理想的颗粒状原料。
★较传统工艺减少25%粘合剂，干燥时间缩短。
★每批仅干混2分钟，造粒1～4分钟，功效比传统工艺提高4～5 倍。
★整个操作具有严格的安全保护措施。
★主药与辅料差异大时，仍能达到均匀结合，无分层现象。
★The machine adopts horizontal barrel(cone) structure. Its structure is reasonable.
★The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
★Short granulating time, high efficiency and energy saving
★The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material to tablet pressing procedure.
★Compared with traditional process, it can reduce 25% of binder and shorten drying time too.
★Each batch needs 2 minutes to dry mixing and 1~4 minutes to granulating. Compared with traditional process, its efficiency can raise 4~5 times.
★Whole operation has strict safe protective measures.
★It can mix uniformly even when the gravity difference between main material and excipient is very big,without the phenomenon of
delamination.
技术参数：
规格 Specification 项目 Item |
7/2.5 |
10 |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
600 | 800- 1500 |
生产能力 Capacity (Kg/批 batch) | 0.3-1 | 3 | 15 | 35 | 50 | 60 | 80 | 100 | 135 | 200 |
按用户要求设计 By lient |
颗粒粒度(目)Granules size (Mesh) | 20-80 | ||||||||||
作业时间 Working time (min) | 5-7 | ||||||||||
容器容积 Container volume (L) | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 | |
搅拌电机功率Mixing power (Kw) | 0.75 | 2.2 | 4/5.5 | 6.5/8 | 6.5/8 | 11/14 | 11/14 | 13/16 | 18.5/22 | 22/28 | |
切刀电机功率Cutting power (Kw) | 0.75 | 1.1 | 1.3/1.8 | 2.4/3 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 | |
搅拌转速 Mixing speed (r/min) | 30-1000 | 30-600 | 200/400 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 | |
切刀转速 Cutting speed (r/min) | 300-3000 | 1500/3000 | |||||||||
压缩空气压力 Pressure of compressed air (Mpa) | 0.3-0.6 | ||||||||||
压缩空气耗量 Consumption of compressed air (m3/min) | 无 | 0.1 | 0.11 | 0.13 | 0.2 | 0.25 | 0.25 | 0.3 | 0.4 | 0.4 | |
机器重量 Weight (Kg) | 150 | 300 | 400 | 800 | 900 | 1200 | 1500 | 1550 | 1650 | 1800 | |
产品主要尺寸(长×宽×高mm）Overall dimension of machine (L×W×H) | 800× 450× 900 | 1250× 550× 1160 | 1730× 750× 1610 | 1950× 750× 1810 | 1950× 750× 1810 | 2210× 880× 2000 | 2210× 880× 2000 | <td style="BORDER-BOTTOM: rgb(35,25,22) 1px solid; BORDER-LEFT: #f0f0f0; PADDING-BOTTOM: 0px; BACKGROUND-COLOR: transparent; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; BORDER-TOP: #f0
||||
