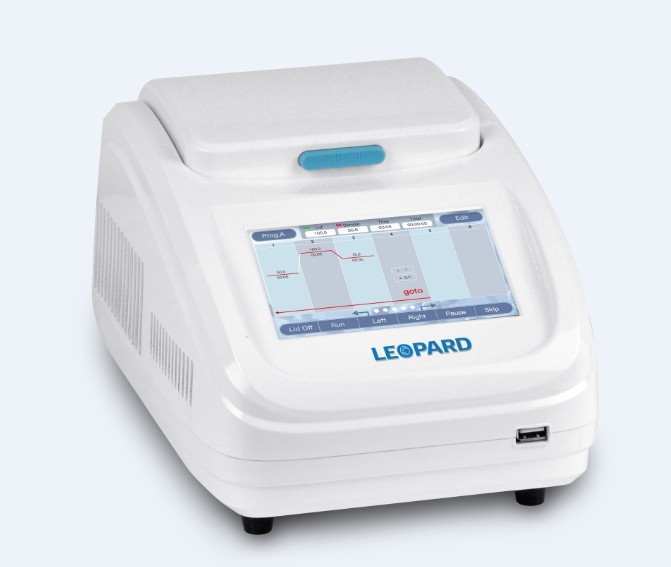

莱普特热盖金属浴GT-R100
莱普特热盖金属浴GT-R100

参考价格

面议

型号

品牌

产地

北京

样本

暂无
莱普特科学仪器(北京)有限公司

高级会员

|

第1年

|

生产商

工商已核实

留言询价
核心参数
产品介绍
创新点
相关方案
相关资料
用户评论
公司动态
问商家
留言询价
×

*留言类型

*留言内容

*联系人

*单位名称

*电子邮箱

*手机号

提交
点击提交代表您同意 《用户服务协议》《隐私协议》

虚拟号将在 180 秒后失效

使用微信扫码拨号

为了保证隐私安全,平台已启用虚拟电话,请放心拨打(暂不支持短信)
×
是否已沟通完成
您还可以选择留下联系电话,等待商家与您联系

需求描述

单位名称

联系人

联系电话

Email

已与商家取得联系
同意发送给商家
产品介绍
创新点
相关方案
相关资料
用户评论
公司动态
问商家

产品简介:

GT-R100/GTL-R100热盖金属浴可广泛应用于PCRLAMPNASBARPA、样品的保存和反应、DNA扩增和电泳的预变性、血清凝固、核酸和蛋白质的变性处理等。

The GT-R100/GTL-R100 Dry Bath Incubator with Heated Lid can be widely used in LAMP, NASBA, RPA, sample preservation and reaction and electrophoresis pre-denaturation, serum coagulation, nucleic acid and protein denaturation treatment.

产品特点:

1、外观新颖独特,界面操作简单方便,体积小巧。 2、采用5TFT高清全触摸彩屏,可快速编辑所需文件,温度曲线直观显示,设置方便快捷,实时精确显示温度曲线和仪器运行过程状态。 3、制冷型具有基于半导体加热制冷技术,以及PID控温技术设计,升降温速率**。 4、巧妙的弹性热盖结构设计,自适应不同高度的试管,保证实验一致性,达到实验**条件。 5、热盖温度具有独立设置模式、模块温度加设定值两种模式。 6、内置10组程序,每组程序可增加、删除温度步或循环步。 7、多种类型模块可以随意选配,安装拆卸方便。 8、金属浴可运行PCR反应程序。

1. Novel and unique appearance, simple interface operation, small size.

2. Using 5-inch TFT high-definition full-touch color screen, can quickly edit the required documents, temperature curve visual display, the setting is convenient and fast, real-time accurate display temperature curve and instrument operation process status.

3. Refrigeration type is based on semiconductor heating and cooling technology, and PID temperature control technology design,the rate of heating and cooling is excellent.

4. Ingenious elastic hot cover structure design, adaptive to different heights of the test tube, to ensure the consistency of the experiment, to achieve the best conditions of the experiment.

5. The hot cover temperature setting has two modes: independent setting mode, block temperature plus setting value.

6. Built-in 10 groups of programs, each group of programs can add or delete temperature steps or cycle steps.

7. Various types of blocks can be selected at need, easy to install and disassemble.

型号

GTL-R100(制冷型)

GT-R100(加热型)

模块温度设置范围

- 10~100

0~100

模块温度控制范围

(室温-25)~100

(室温+5)~100

热盖温度设置范围(105)

0~105 / 模块+(0~105℃)

0~105 / 模块+(0~105)

热盖温度控制范围

室温+5~105

室温+5~105

定时范围

1s ~99m59S / 0为∞

1s ~99m59S / 0为∞

**步数

10

10

**循环次数

99

99

模块控温精度

±0.5

±0.5

热盖温度精度

±1.0

±1.0

模块温度均匀性

±0.5

± 0.5

显示精度

0.1

0.1

加热时间(室温25℃)

升温速率37-100℃)≥7/min

升温速率37-100℃)≥7/min

冷却时间

降温速率100-37℃)≥8/min

风扇降温

尺寸

W.185xD.280xH.160mm

W.185xD.280xH.160mm

净重

3.2Kgs

2.7Kgs

Model

GTL-R100(Cooling)

GT-R100(Hesting)

Block temp. setting range

- 10~100

0~100

Block temp. control range

(R.T.-25)~100

(R.T.+5)~100

Hot lid temp. setting range(105)

0~105 / Block+(0~105℃)

0~105 / Block+(0~105)

Hot lid temp. control range

R.T.+5~105

R.T.+5~105

Time range

1s ~99m59S / 0为∞

1s ~99m59S / 0为∞

Max. number of steps

10

10

Max. number of cycles

99

99

Block temp. control accuracy

±0.5

±0.5

Hot lid temp. accuracy

±1.0

±1.0

Block temp. uniformity

±0.5

± 0.5

Display accuracy

0.1

0.1

Heating time (R.T.25)

Heating rate37-100℃)≥7/min

Heating rate37-100℃)≥7/min

Cooling time

Cooling rate100-37℃)≥8/min

Fan cooling

Dimension

W.185xD.280xH.160mm

W.185xD.280xH.160mm

Net weight

3.2Kgs

2.7Kgs

型号

规格

孔直径

孔底形状

模块尺寸

A

0.2ml×96

6.7mm

锥底

107×71×38mm

B

0.5ml×54

8mm

锥底

107×71×35mm

C

1.5ml×35

10.8mm

锥底

107×71×27mm

D

2.0ml×35

10.8mm

圆底

107×71×27mm

Cat#

Spec

Dia. of hole

Hole bottom shape

Block dimension

A

0.2ml×96

6.7mm

锥底

107×71×38mm

B

0.5ml×54

8mm

锥底

107×71×35mm

C

1.5ml×35

10.8mm

锥底

107×71×27mm

D

2.0ml×35

10.8mm

圆底

107×71×27mm
