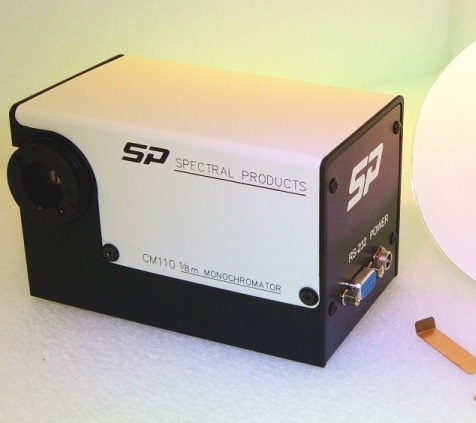

CM110单色仪
CM110是一款多功能的紧凑型单色仪，产品尺寸：约13x8x8cm；采用高质量双光栅塔台、单独组件设计，通过RS232连接电脑，是一种完全计算机控制，双向光栅驱动的单色仪，其中消隙传动装置确保设备在一些严格的应用中保持稳定高效运行。CM110适用于荧光、辐射、过程控制、颜色、可调滤波器、拉曼光谱等测量领域。CM110理想工作范围在UV~IR。所有设备在出厂前均严格的定标，操作软件操作简单方便。
产品特点：
紧凑的设计4.75"x2.75"x2.75"
RS232接口连接电脑
允许大光谱范围的双光栅设计
厂家预装成一套完整的单色仪和光谱仪
扫描范围在纳米、埃、微米、波数或者eV
改变狭缝方便
单色仪厂家预装调整好光栅角度和矫正
应用:
荧光
辐射测量
精密控制
色度分析
可调滤波
拉曼光谱
光谱分析
产品参数：
| Feature | Value |
| Design: | Czerny-Turner， dual-grating turrets |
| Focal Length: | 110mm |
| f/#: | 3.9 |
| Beam Path: | Straight through standard， right angle provided on request. |
| Wavelength Drive: | Worm and wheel with microprocessor control and anti-backlash gearing. Bi-directional. Usable in positive or negative grating orders. |
| Wavelength Precision: | 0.2nm |
| Wavelength Accuracy: | ± 0.6nm |
| Slewing Speed: | >100nm/second |
| Stray Light: | <10-5 |
| Slits: | Standard Set includes; 0.125mm， 0.15mm， 0.30mm， 0.6mm， 1.2mm and 2.4mm x 4.0mm. For other sizes， consult SP. |
| Max Resolution: | <1nm w/1200G/mm grating and standard slits |
| Gratings: | One to two gratings. (30 x 30mm) must be purchased. See CM grating options page |
| Software: | Demonstration control program and LabView driver included. |
| Power: | UL listed 110/220V power pack |
| Interface: | RS232 standard |
| Warranty: | One year |
| Options: |
|
光栅选型：
Part # | Ruling | Peak | Range (nm) | Peak %T |
(G/mm) | (nm) | |||
| AG2400-00240-303 | 2400 | 240 | 180 - 680 | 70 |
| AG1200-00500-303 | 1200 | 500 | 330 - 1000 | 83 |
| AG1200-00600-303 | 1200 | 600 | 400 - 1500 | 80 |
| AG1200-00750-303 | 1200 | 750 | 480 - 1500 | 85 |
| AG0600-00500-303 | 600 | 500 | 350 - 1300 | 80 |
| AG0600-01200-303 | 600 | 1200 | 800 - 3000 | 85 |
| AG0300-00500-303 | 300 | 500 | 310 - 1100 | 80 |
| AG0300-02500-303 | 300 | 2500 | 1500 - 6000 | 88 |
| AG0150-00500-303 | 150 | 500 | 320 - 980 | 72 |
| AG0150-04000-303 | 150 | 4000 | 2500 - 9000 | 93 |
| AG0075-08000-303 | 75 | 8000 | 5000 - 15000 | 82 |
| AG0075-01700-303 | 75 | 1700 | 1100 - 2800 | 85 |
| AG0045-01750-303 | 45 | 1750 | 1100 - 3000 | 78 |
